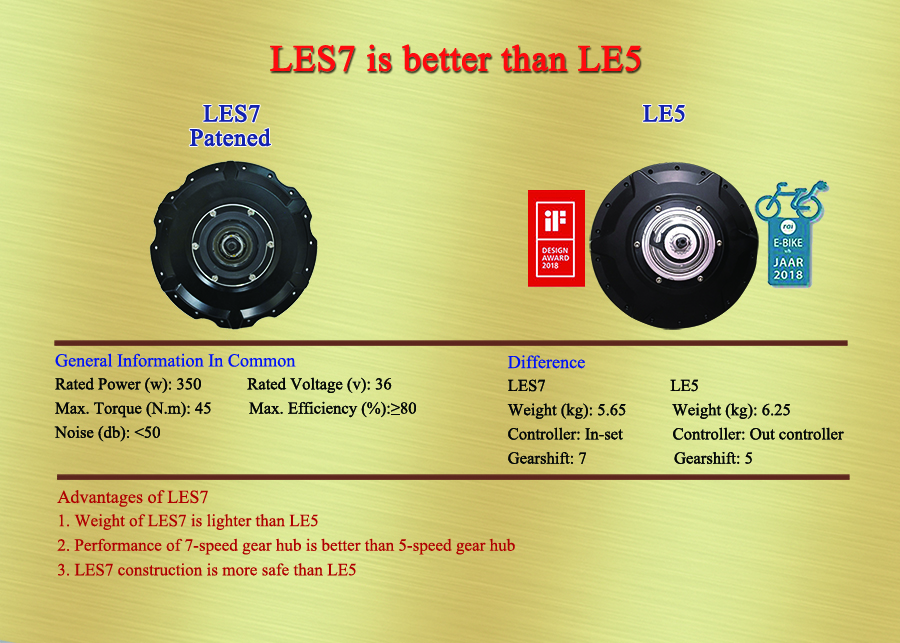

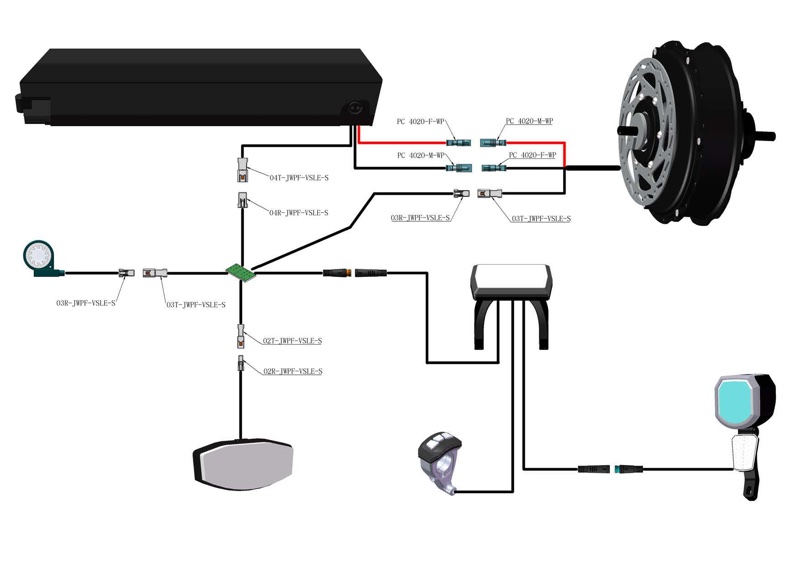

LES7 Drive System

7 speed gear hub integrated with motor

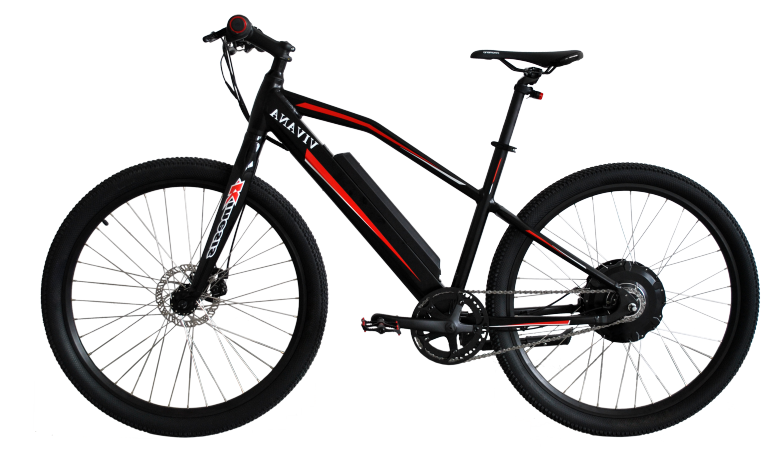

MotorLE350NS7
ControllerLC03B
DisplayLDB01
SensorLSRC02

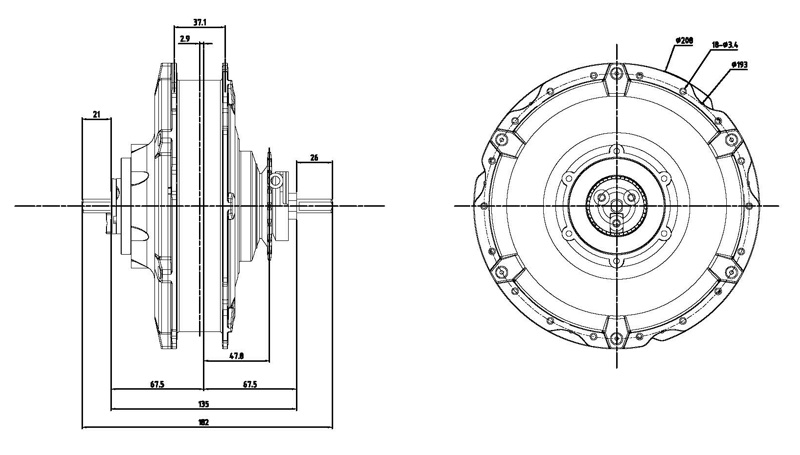

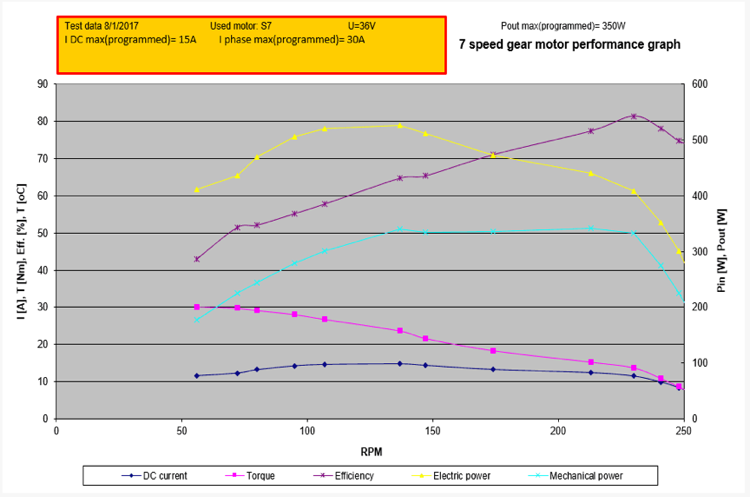

Motor Parameters
Structurerear direct drive
Rated Power350W
Max Torque45N.m
Noise<50Db
Max. Efficiency≥82%
Openning size135mm

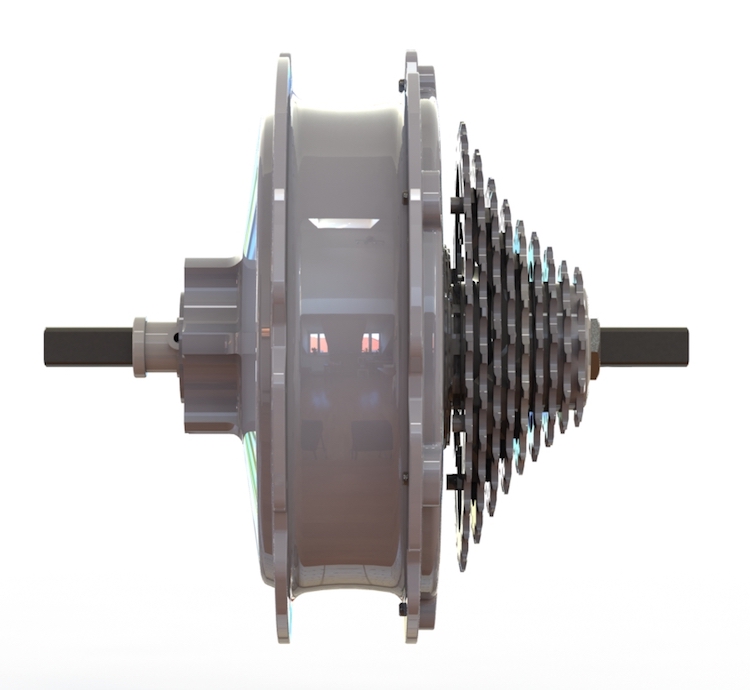

LE250R Drive System





ModeLE250R
StructureToothless Drive
Wheel diameter (inch)26/27.5/28
Rated Voltage (DCV)24/36
Empty rotating speed (Rpm)325 ; 245
Rated power (W)250
Load rotating speed (Rpm) 290 ; 205
Max. torque23 N.m
Efficiency (%) ≥ 80
Weight (kg)3.4
Noise (dB) < 25
Work temperature -20-45°
ColorBlack / Silver

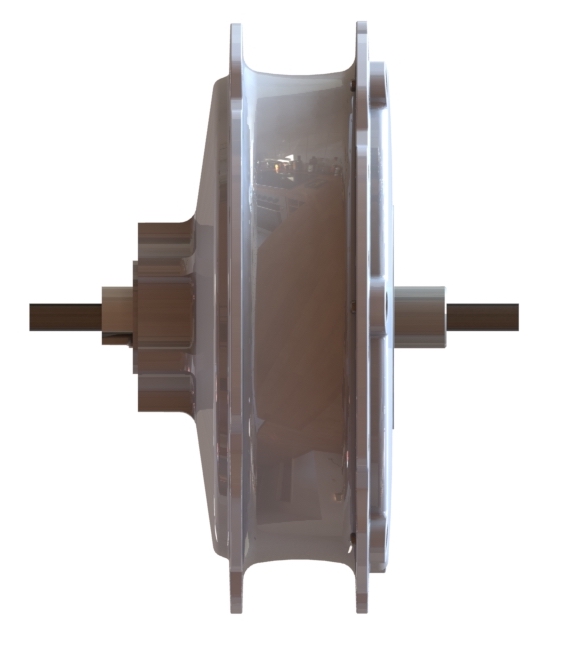

LE200F Drive System



Mode

LE200F

Main parameters

Installation position

Front motor

Structure

Toothless drive

Wheel diameter (inch)

20/26/27.5/28

Rated Voltage (DCV)

24/36

Empty rotating speed (Rpm)

325 ; 245

Rated power (W)

200

Load rotating speed (Rpm)

290 ; 205

Max. torque

23 N.m

Efficiency (%)

≥ 80

Weight (kg)

3.4

Noise (dB)

< 25

Work temperature

-20-45℃

Color

Black / Silver
