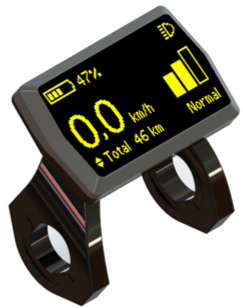

LDB01
|
Model |
LDB01 |
|
Display type |
OLED |
|
Work voltage |
12V |
|
Work temperature |
-5~40℃ |
|
Power assisted Mode |
0~3 |
|
Communication |
LIN |
|
Size |
90*55*15mm |
LDD01
|
Model |
LDD01 |
|
Display type |
LED |
|
Work voltage |
12V |
|
Work temperature |
-5~40℃ |
|
Power assisted Mode |
0~3 |
|
Communication |
LIN |
|
Size |
46*62*15mm |

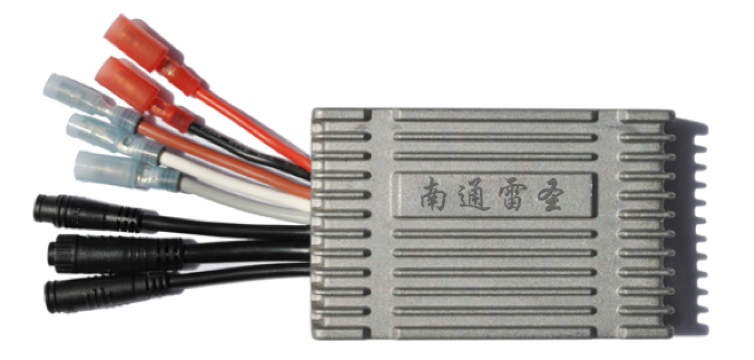

LC03C
Spec.
Main spec.
Rated voltage (DCV)：36/43/48
Undervoltage：32/38/42
Current limit (A) ：15/12/10
Rated current (A) ：8/7/6
Rated power (W) ：250
Operating temperature：-20 - 55℃
Installation parameter
Size (mm) ：85*50*35
Communication protocal：UART/LIN
Power brake：yes
More technical parameters
Power assisted mode：Speed sensor、Torque sensor
Control method：sine wave (Hallless motor)
Speed limit (km/h) ：25
The output voltage of the lamp (36V) is additionally connected to the 36-turn 6-converter
Software parameter setting: yes
Testing and certification
Waterproof level：IP 65
Certification：CE / ROHS / EN 15194
|

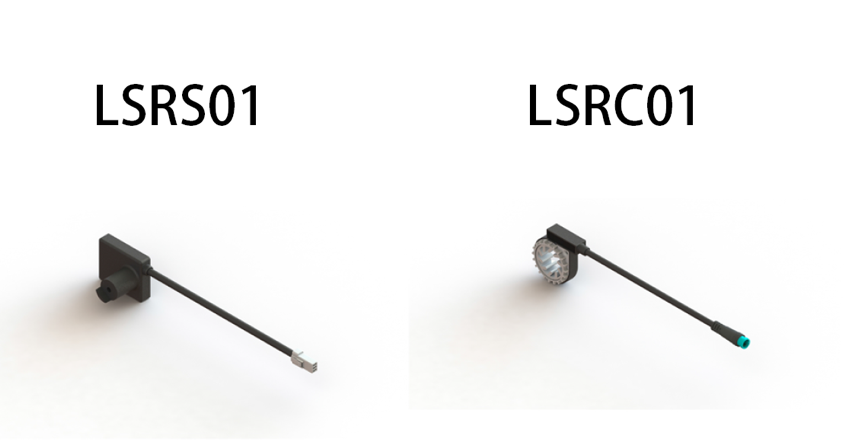

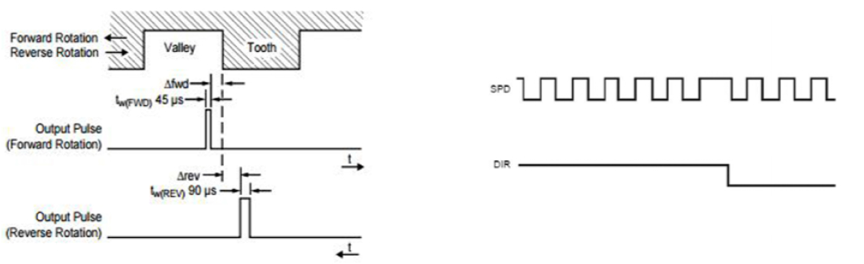

Spec. Main spec.：3 line Classification：Rotational speed sensor Number of pulses : one tooth and one pulse Rated input voltage ：4.5 -15 Operating temperature ：-25 - 55 ℃ Output method： Forward rotation 45uS pulse width Invert 90uS pulse width |
|
Spec. Main spec.：4 line Classification：Rotational speed sensor Number of pulses : 32 pulses (per circle) Rated input voltage ：4.5 -15 Operating temperature ：-25 - 55 ℃ Output method： Forward high level reverse low level Speed pulse output |
Battery Packs

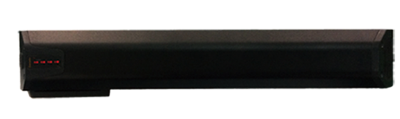

Down tube battery box+BMS+batteries (10.4/14AH Samsung)

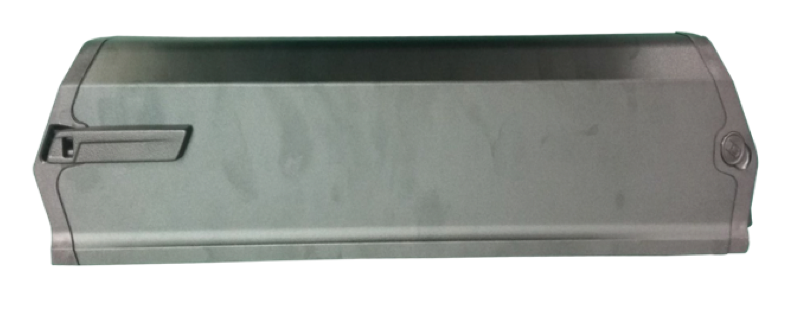

Down tube battery box+BMS+batteries (17AH Samsung)

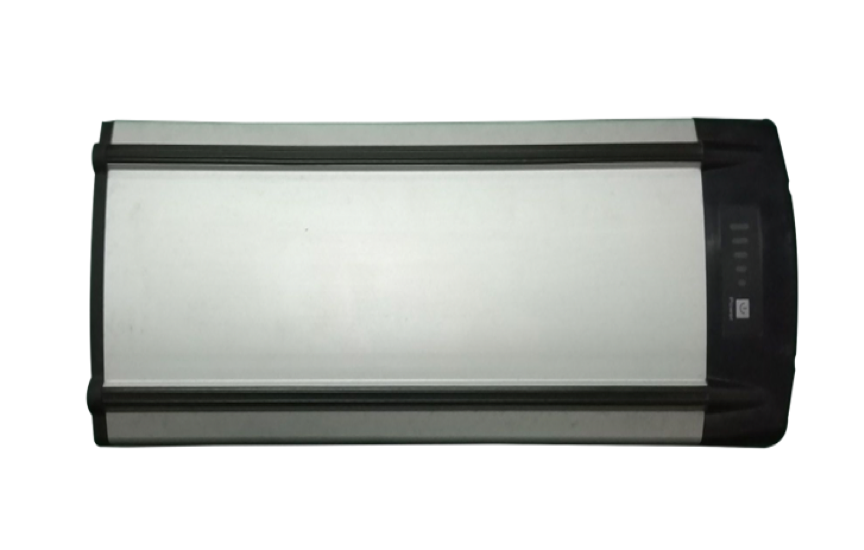

Rear luggage rack battery box+BMS+batteries (36V/8.6AH samsung)

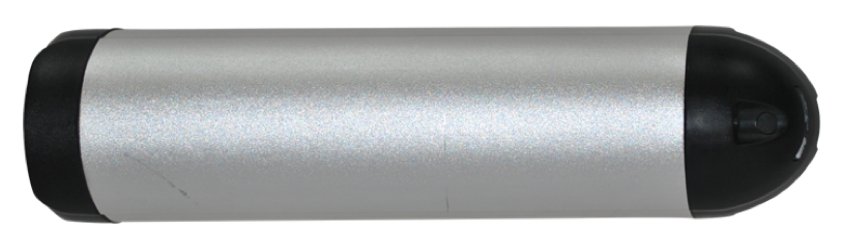

Bottle battery box+BMS+batteries(36V/7.8AH EVE)
